Important Notice!!
Currently there are a few similar cheaper Fake Copy Bluetooth modules sold in the market, their outlook is similar like ours, but the KEY differences are:
1. The fake copy modules are Slave-only; Our BT module are 2-in-1(Master & Slave)
2. The fake copy modules didn't have the special designed cable which can make the Bluetooth module DIRECTLY connect with your PC's COM port!! Our BT module comes with that cable!
3. Over 70% of the fake copy's CRS flash memory chipsets are probably used chips, which are recycled from electronics rubbish!! This will cause unstable factors and high risk in users' deisgn work projects!
We guarantee all our chipsets are BRAND new from orignal facotry!!
|
Item Name |
Bluetooth UART RS232 serial converter Module |
|
Operating Frequency Band |
2.4GHz unlicensed ISM band |
|
Bluetooth Specification |
V2.0+EDR |
|
Output Power Class |
Class 2 |
|
Operating Voltage |
3.3V |
|
Host Interface |
USB/UART |
|
Audio Interface |
None |
|
Flash Memory Size |
8Mbit |
|
Dimensions |
27.2mm x 12.8mm x 2.5mm |
|
Net Weight |
9.6 g / 0.3 oz |
Key Features:
1. CSR Bluetooth Chip Solution
2. Bluetooth Spec v2.0+EDR Compliant
3. Enhanced Data Rate (EDR) compliant with V2.0.E.2 of specification for both 2Mbps and 3Mbps modulation modes
4. Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
5. Increadible samll size with 3.3V input, and RoHS Compliant
6. UART interface and with baudrate setup function
7. Support for 8Mbit External Flash Onboard
8. Support for 802.11Co-Existence
9. With the adapter board has MAX3232, you can easily connect your PC COM data directly to this module!
10. Can be easily embedded into your own design systems!! We already soldered all the important pins for you!!!

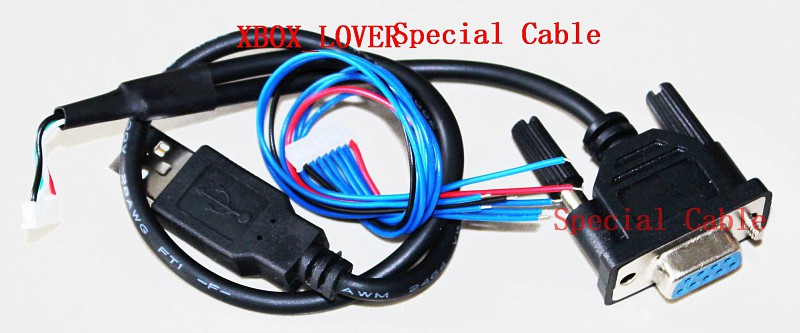

We will provide you with the Free Cable for the connection.
Buy it now, and you will get an special cable as a free Gift, which can be used directly to connect module to your PC's USB and RS232 COM port!! This makes your appication much easier!! Fake copies do not have this cable!!

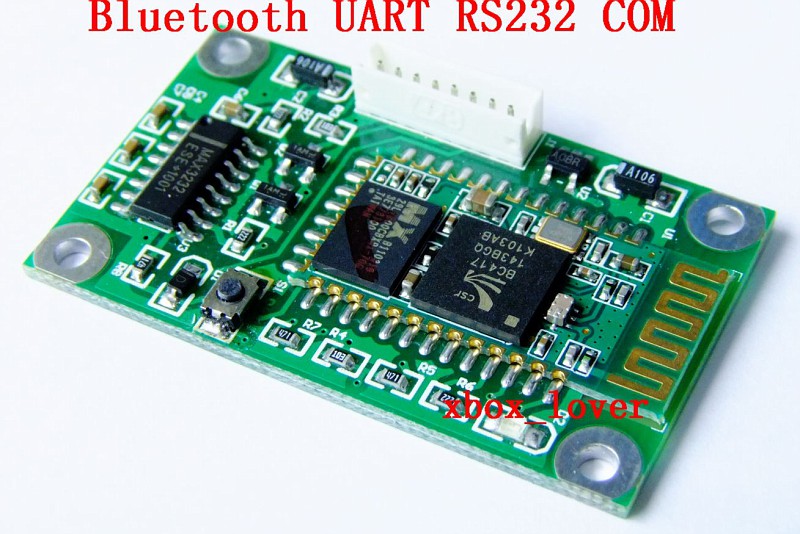

Product Description:
The Bluetooth UART RS232 serial Converter Module can easily transfer the UART data through the wireless Bluetooth, without complex PCB layout or deep knowledge in the Bluetooth software stack, you can combine this bluetooth module with your system:
* MCU, ARM or DSP systems.
* SOC systems.
* Personal Digital Assistants (PDAs)
* Computer Accessories
* Other systems your want to use under bluetooth fucntions.
Datasheet Link:
Click Here to Download
(Please contact us if there is any problem with datasheet download)
Bluetooth
UART RS232 Converter Module + Adapter Board
x 1 (We had soldered for you without any charge!!)
Special cable X 2
